BOD Incubator
BOD Incubator
MODEL: ASE-BI-04
UNIQUE FEATURES & BENEFITS
Digital PID temperature controller
Digital timer 99:99 hr
Negligible Maintenance
High Temperature Accuracy
Better Temperature Uniformity
Temperature Low / High variation alarm
Fire resistant insulation compliant to BS476 Class “O”
Height adjustable stainless steel shelves
Illumination through LED lamp
APPLICATIONS
Biological Oxygen Demand Determination
General Incubation
Serum studies
Enzyme Assays test
Microbiology Lab
PRODUCT DESCRIPTION
The full from of BOD Incubator is Biological Oxygen Demand incubator and it is widely used in microbiology laboratories for the applications that include cell culture and fungal growth, BOD test, fermentation, crop and physiology and various pharmaceutical tests etc. It is also known as low temperature incubator or refrigerated incubator because it is made with temperature range between 5°C to 60°C or with cooling and heating functions under one unit.
DIFFERENCE BETWEEN INCUBATOR AND BOD INCUBATOR
The basic difference between an incubator and BOD incubator is temperature. A general purpose incubator has only heating option and is usually operated at 37°C; while a BOD incubator also known as cooled incubator has both cooling and heating options and usually operated at low temperatures such as 10°C and 21°C.
BOD INCUBATOR WORKING PRINCIPLE
Electricity is supplied through mains MCB. Temperature is set through digital PID temperature controller, usually at 20°C. Machine is kept running for 5 days. Refrigeration system starts just after setting temperature. Axial fan circulates air inside chamber. Temperature sensor senses current temperature and give data to PID controller, which furthermore keeps the set temperature constant till desired time.
TECHNICAL DISCERPTION
Temperature: Standard temperature range of our BOD Incubators is 5°C to 60°C. In incubation process, temperature accuracy and uniformity both are important; therefore, our BOD incubators are equipped with digital PID controller supported by PT100 sensor for temperature settings that displays both SV (set value) and PV (process value). Temperature accuracy is ± 0.5°C and uniformity remains ± 1°C.
Illumination: For illumination, we use fluorescent or LED light, which is door operated use can also individual switch it On or OFF permanently. As an option, we also provide 3 tube lights on door with digital cyclic timer in to control the illumination 24×7 weekly.
Safety: There are some safety features in our BOD Incubators such as over temperature and over current protection and temperature low and high limit buzzer alert etc.
Cooling: For cooling temperature under BOD Incubator, we use CFC free refrigeration system of reputed brand in the market such as EMERSON or Godrej.
Heating: Heating is done by ISI mark U shaped tubular air heaters.
Air circulation: Air circulation is mandatory to spread uniform temperature inside the chamber; for this we use axial fans or motorized blower system.
Construction: Our BOD incubators are made keeping durability in mind. Construction is durable and double walled; exterior is made of thick mild steel and powder coated; while, interior is made of stainless steel. The gap between these two walls is filled with PUF insulation. Outer door is solid and there is also an inner door made of glass to view samples. Outer door has mechanical door lock and key.
Trays: Each BOD Incubator is provided with 2 to 5 removable trays. These trays are removable and height adjustable and made of steel wire mesh cable. We also provide perforated stainless steel trays as option.
Options: We offer some options to our customers with little added cost. These options are 21 CFR software, PC interface and PLC based HMI controller with USB interface and validation port at either side of the machine. We also make GMP BOD Incubators with complete stainless steel construction.
We are BOD incubator manufacturers and suppliers in India. Our standard models can be bought at highly competitive price with excellent warranty terms, price and performance guarantee. We also make customized units at factory price based on specific requirements of each customer.

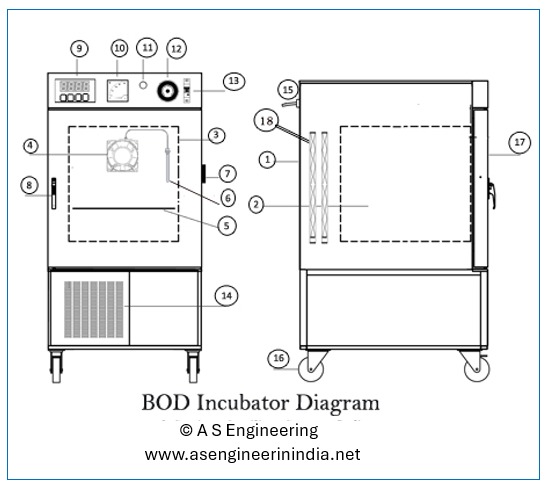

TECHNICAL DISCERPTION
- Exterior
- Inner chamber
- Toughened glass window
- Air circulation fan
- Removable tray
- Temperature sensor
- Door hinges
- Door handle with lock & key
- PID temperature controller
- Analog ampere meter
- Pilot lamp
- Safety thermostat
- On/Off MCB
- Refrigeration system
- Power cord
- Caster wheels
- Solid door
- Heater
TECHNICAL SPECIFICATIONS
| Temperature Range | 5°C to 60°C |
| Temperature Accuracy | ± 0.5°C |
| Temperature Uniformity | ± 1°C |
| Temperature sensor | PT-100 |
| Temperature Controller | Micro-processor based Auto Tune P.I.D Digital Temperature Controller with PT 100 sensor & Resolution 0.1°C. Dual display one for process value (PV) & the another for Set Value of Temperature (SV) LED display of SV & PV |
| Construction | Double walled with Polyurethane foam (PUF) Insulation |
| Inner Construction | Stainless Steel 304 grade with smooth corners for easy cleaning |
| Exterior Construction | Powder Coated GI sheet |
| Exterior Door | Solid door with magnetic gasket & proper handle, lock & key. |
| Inner door | Glass door to view samples without opening the door and loss of temperature |
| Trays | Stainless Steel Wire mesh cable trays (removable) |
| Interior illumination | LED Light |
| Indication | Control panel with indicating Lamp for Compressor, Heater and on / off switch for mains |
| Heating Element | U-shaped SS tubular heaters |
| Refrigeration System | Hermetically sealed compressor unit for CFC Free cooling system as per the capacity |
| Air Circulation | Forced Air Circulating System with Motorized Blower / Axial fan for Temperature Uniformity |
| Safety | Temperature High / Low alarm |
| Wheel | Castor wheels for easy movability with brake |
| Power supply | 230 Volts A.C 50 Hz Single Phase |
| Optional | Digital event timer Illumination with 3 fluorescent lights Digital cyclic timer 24 x 7 Exterior SS 304 / SS 316 (GMP Model) Stainless steel perforated tray Data logger with USB Interface Humidity system Door open buzzer PLC & HMI controller with USB interface 50 mm validation port hole to insert sensor or wire |
BOD INCUBATOR MODEL & STANDARD DIMENSIONS / SIZES
| Model | Capcity | Inner Chamber Size W x D x H | No. of Shelves |
| ASE-BI-04-90 | 3 cu.ft. (90 Ltr) | 43 x 43 x 50 cm | 2 |
| ASE-BI-04-180 | 6 cu.ft. (180 Ltr) | 51 x 51 x 70 cm | 2 |
| ASE-BI-04-300 | 10 cu.ft. ( 300 Ltr) | 55 x 55 x 100 cm | 3 |
| ASE-BI-04-360 | 12 cu.ft. ( 360 Ltr) | 60 x 60 x 100 cm | 3 |
| ASE-BI-04-480 | 16 cu.ft. ( 480 Ltr) | 65 x 65 x 114 cm | 4 |
| ASE-BI-04-600 | 22 cu.ft. ( 600 Ltr) | 60 x 80 x 125 cm | 5 |
| ASE-BI-04-800 | 28 cu.ft. ( 800 Ltr) | 80 x 80 x 125 cm | 5 |
