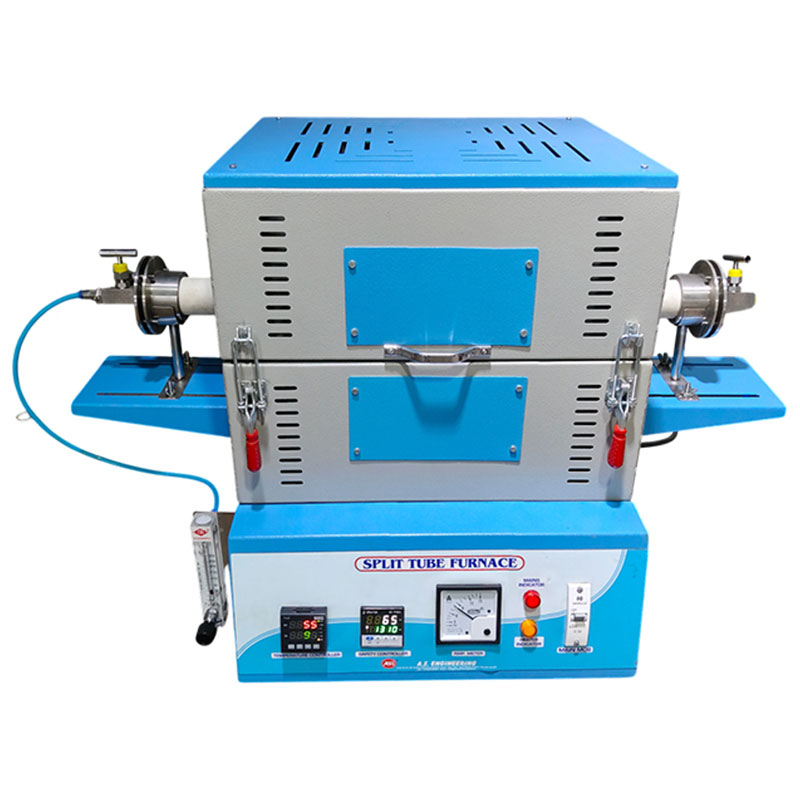

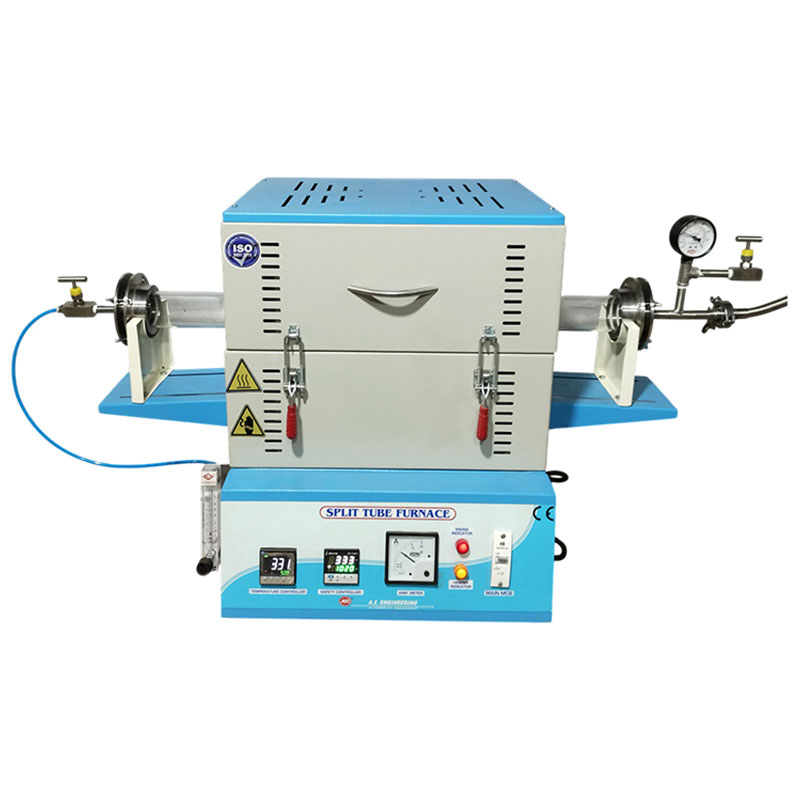

Split Tube Furnace

MODEL: ASE-STF-58

UNIQUE FEATURES

Available in 1100°C 1400°C, 1600°C & 1800°C temperature
Single Zone, Two Zones and Three zones configuration as required
Quartz and high purity alumina tube
Programmable temperature controller
Ideal for inert atmosphere based heat treatment
Controllable heating and cooling rate
Supplied with vacuum pump & accessories
Excellent temperature uniformity
Rugged and durable construction

Description

Split tube furnaces by A S Engineering are available in 1200°C, 1400°C, 1600°C and 1800°C maximum temperature range. These horizontal tube furnaces offer precise temperature control, excellent temperature uniformity and the easy solution for heating small samples.

High Temperature Split Tubular Furnaces is used in sintering and high temperature heat treatment of metal materials, ceramic materials, nano materials, semiconductor materials, powder metallurgy and other new materials in colleges and universities, scientific research institutes, factories and enterprises, petrochemical, aerospace and other industries.

Based on the temperature range we supply quartz tub or alumina tube with outer diameter 40, 60,70, 80 and 100 mm. These horizontal Split Tube furnaces are designed with maximum temperature ranges 1200°C, 1400°C, 1600°C and 1800°C. Each unit is fitted with an imported programmable temperature controller with 30 segments for heating and cooling rate up to 15°C per min. These horizontal tube furnaces are also ideal to perform inert atmosphere based heat treatment. A vacuum pump is supplied with each unit where user can achieve 0.1Mpa vacuum pressure and purge argon, nitrogen, hydrogen or any inert gas. Other standard accessories are vacuum pump, vacuum gauge, tube flange, O ring and silicone tube etc. Alumina ceramic end plugs are import accessory of a tube furnace; we supply this pair with each horizontal tube furnace for both ends to help achieving uniform temperature.

Our Split tube furnace units are supplied all over India at factory price with full support of installation, commissioning and after sales support. In order to get a precise quote, please provide us operating temperature, tube heating zone and diameter so that we may prepare a budgetary price quote for you.

TECHNICAL SPECIFICATIONS

Particulars	1200°C	1400°C	1700°C
Max. Temperature	1200°C	1400°C	1700°C
Working temperature	1100°C	1300°C	1600°C
Temperature accuracy	±1℃	±1℃	±1℃
Thermocouple	K Type	S Type	B Type
Heating elements	Resistance wire	Sic	Mosi2
Heating rate	10-15℃/min depending on load volume
Temperature controller	Programmable PID controller, Single program 30 steps for Ramp & Dwell, LED Display of SV & PV & SCR power control
Safety protection	Over-temperature protection function, automatic power-off when the temperature exceeds the allowable set value and thermocouple broken protection
Furnace structure	double layer steel with dual cooling fan and surface temperature below 60℃
Chamber construction	Alumina ceramic fiber
Tube material	Quartz tube / Alumina tube
Tube position	Horizontal
Adjustable flange	Adjustable flange support structure at both ends to extend furnace tube life
Heating zone length	100 mm / 205mm / 300 mm / 440 mm
Tube diameter	40mm / 60 mm / 70 mm / 80 mm / 100 mm
Heating zone	Single zone
Sealing performance	Both ends of the furnace tube are equipped with stainless steel metal flanges, matched with high-temperature PTFE gaskets, which can work under vacuum with a vacuum degree of ≤5pa (rotary vane vacuum pump)
Atmosphere performance	There are air inlets and outlets at both ends of the flange. The pressure gauge is installed on the metal flange. The precision needle valve can adjust the air intake and output, and can be fed with protective gases such as nitrogen, argon, and hydrogen.
Power supply	230 Volts A.C 50 Hz Single Phase / 440 Volts A.C 50 Hz Three Phase
Accessories	Vacuum pump Vacuum gauge Tube flange O rings Stainless Steel Flexible Hose Pipe for vacuum / Silicone tube Ceramic end plugs Rotameter with PU connection pipe Stainless Steel Sample Puller Rod Operating manual
Optional	Dual zones / Three zones Ceramic alumina tube Touch screen temperature controller / data recording / Software (Furnace can be operated by PC by installing a control software)
