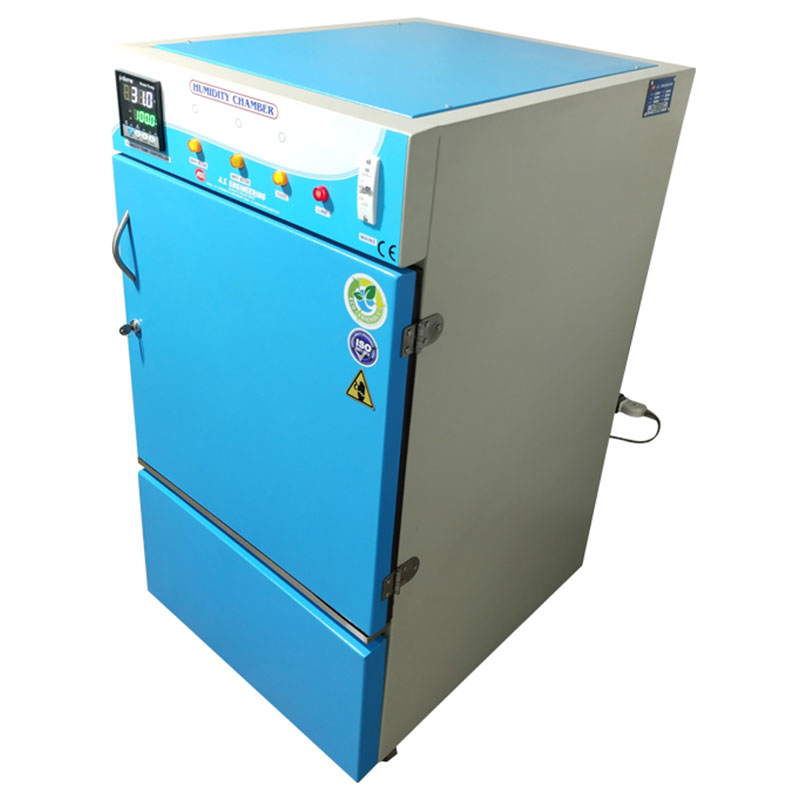

Humidity Chamber

MODEL: ASE-HC-18

UNIQUE FEATURES

Ergonomic Design
Flexible & Space Saving Humidity Chamber
Superior Functionality
Negligible Maintenance
High Temperature Accuracy
Better Temperature Uniformity
Long-Term stability tests
Stainless steel interior
CFC free refrigeration system
ISI marked heating elements
Various safety features

PRODUCT DESCRIPTION

The purpose of humidity and temperature test chambers is to create artificial conditions inside a controlled cabinet and test effects on product samples. These chambers are used by semiconductor, automobile, cement, food and pharmaceutical companies to test their samples at various temperatures and humidity ranges (damp and heat test) before launching their final products; some of applications are Damp Heat Test and Tropical Exposure etc.

We are ISO and CE certified Temperature and Humidity test chamber manufacturers in India. Our humidity chambers are available in benchtop, medium and large sizes with features of high accurate and uniform readings, rugged construction and easy operation. Standard humidity chambers are available with temperature ranges 0°C to 150°C, -20°C to 150°C and -40°C to 150°C, -60°C to 150°C and -70°C to 150°C with humidity range from 20% to 95% RH. These environmental test chambers are also suitable for high temperature and high humidity test for 400 hours or more.

In order to meet diverse needs of different industries and applications, we also offer customization services to our clients. From little modification in design to additional accessory fittings, our engineers can make the user required machine at reasonable price in India.

TECHNICAL DESCRIPTION

Material of construction: Our temperature and humidity chambers are made with completely corrosion resistant material. Inner chamber is made with high grade stainless steel (304 or 316); while, exterior is made with corrosion resistant powder coated GI sheet. The gap between these two walls is filled with thick layer of high density PUF insulation.

Doors: Outer door is insulated and fitted with sturdy pull action clamp to tight seal. Some humidity chambers are also fitted with inner glass doors for observation. If needed a toughened glass window can also be fitted in outer door. Large size humidity chambers are made with double doors. As an option, doors are also fitted with glass window and defogger (Heating cords set around the door to prevent Condensation) in order to view inside during freezing condition

Door sealing: We use only environmentally safe Silicone gasket which is high temperature resistance, aging resistance and moreover feature excellent sealing capability. Low temperature chamber chambers are fitted with double sealing.

Controller: For greater accuracy and reliability, we use only PLC based HMI controller. This controller features color touch screen, graphical display and data logging. User can set temperature and humidity range with profiling. A USB port is given to transfer data into pen drive. We also provide ETHERNET connectivity if required.

Air circulation: Proper air circulation is mandatory requirement for any humidity test chamber; we use heavy duty motor driven blowers or stainless steel axial flow fans for uniform and rapid air distribution across the chamber.

Cooling: For efficient cooling temperature, we use hermetically sealed CFC free compressors of reputed brands in the market including EMERSON.

Heating: Heating inside the chamber is created through energy efficient tubular air heaters.

Humidity System: In order to generate humidity inside the chamber, we equip our test chambers with stainless steel water reservoir tank fitted with immersion heaters for vaporization. To keep humidity system safe from low water, we also fit low water cut-off device.

TECHNICAL SPECIFICATIONS

Particulars	Description
Temperature Range	10°C to 60°C
Temperature accuracy	±0.5°C or less
Temperature Uniformity	±1°C
Humidity Range	40% to 95% RH
Humidity accuracy	± 2% or less
Humidity Uniformity	±3%
ICH stability guidelines for temperature and humidity	For conditions as per ICH guidelines (International Conference of Harmonization) 25°C – 60% RH 40°C -75% RH 30°C -65% RH 25°C-40% RH 40°C -25% RH 30°C-35% RH
Temperature Sensor	RTD PT-100 sensor
Humidity Sensor	Dry Wet sensor
Controller	Microprocessor based PID control with Auto tune
Data output (Optional)	USB interface to transfer data into pen drive
Interior	Stainless Steel 304
Exterior	Powder coated CRCA sheet
Insulation	PUF
Door	Insulated solid door with durable handle closer
Observation door	3 layered toughened glass door
Shelves	Removable Stainless steel wire mesh heavy duty shelves
Noise level	65db or less
Refrigeration	CFC free Copeland / Emerson make compressor utilizing R 134A eco-friendly refrigerant, with condenser, motor and relay or as per the requirement of customer for higher accuracy.
Heating	‘U’ shaped tubular heater in stainless steel
Air circulation	cooling type fan with impeller / blower and flange type motor.
Illumination	Fluorescent light with switch
Access Port (Optional)	50 mm access port with silicone plug
Ambient requirement	below 26°C with controlled atmosphere
Safety Features	Upper and lower temperature & humidity limit alarms (built-in controllers) Over temperature protection Over cooling protection Time delay for compressor switch ON Leakage breaker for power supply Humidity tank low water safety device Compressor Overload protection
Documents	Calibration certificate Instruction manual Warranty Certificate
Mounting	Caster wheels with brake for easy moveability
Power supply	220 / 440 Volts 50 Hz
Optional Accessories	Micro PLC Based Control & Recording System for Reach in stability testing chamber with in-built Recording, PC Interface with 21 CFR Software, DOT – Matrix Printer Interface. R.H. Imported Sensor for 100% RH Readings. Standby Refrigeration Systems as per capacity. PLC for auto change over for standby refrigeration. CFR 21 part 11 compliance software for PLC with Rs. 485 or Ethernet Communication. Data Logger for Rs. 485 communication system with PC Connectivity. 4, 8 and 12 channel Data Scanner complete with sensor RH and PT-100 Sensor. SMS Mobile alert system. Door Access Security system. Safety Digital Temperature Controller Timer Recommended Stabilizer

PRE INSTALLATION MANDATORY REQUIREMENT

(Guarantee void in case of non-compliance)

a) Distilled water or DM water continuous supply with tap for boiler input of % “BSP at 3 feet height.
b) Room temperature around machine preferably at 25°C with air conditioning or a well ventilated room with exhaust fan. However, surrounding temperature should not exceed 30°C.
c) Stabilized input voltage of 230V A.C Amps. Use of servo controlled stabilizer is recommended.

d) Water Drain line with 1/2″ nozzle to be provided at floor level.
