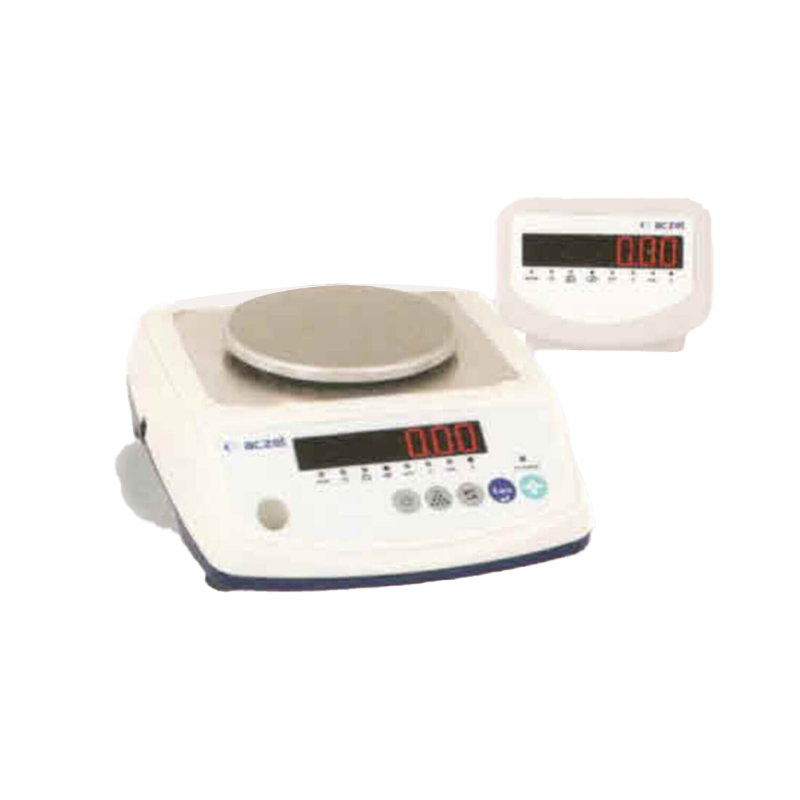

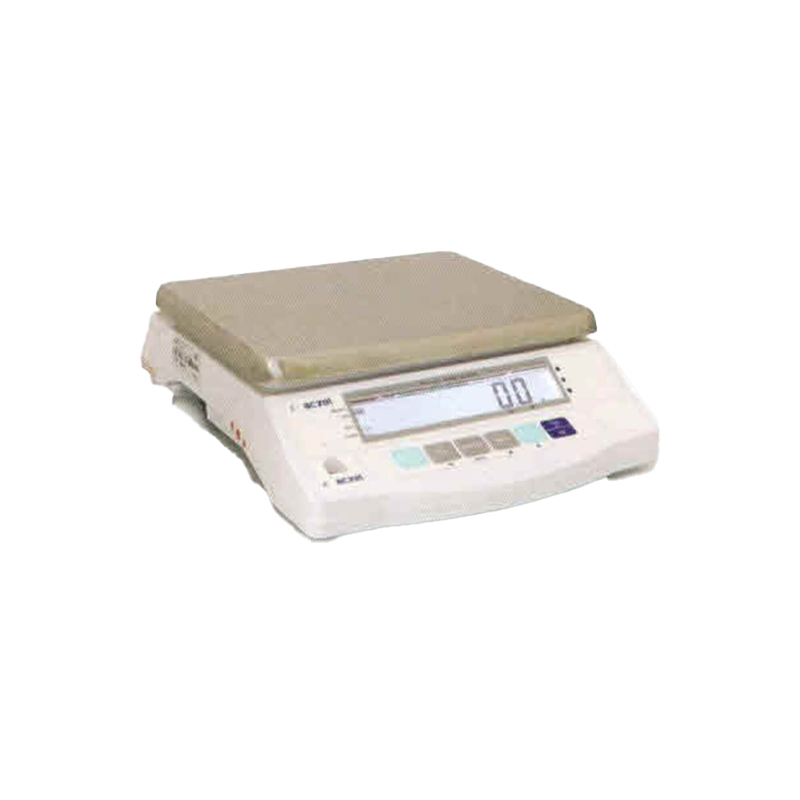

Precision Balance (CG 3 / CG 10)
Precision Balance
MODEL: CG 3 / CG 10
Standard Features
- Rugged & reliable design
- Compact and space saving.
- Easy to read LED display (CG Series)
- Easy to read Backlight LCD display (CG-L Series)
- Built-in rechargeable battery.
- Piece counting function available.
- Draft Shield interior. (10mg / 1mg)
- Fast weighing response time.
- Large Stainless Steel Pan.
- Standard RS 232C Interface.
Precision Balance (CG 3 / CG 10) offers accurate and reliable weight measurements with a high level of precision. Suitable for laboratory and industrial use, these balances are designed to handle a range of weighing tasks, ensuring consistent and dependable results.
specification
Model | CG 203L | CG 303L | CG 503L | CG 302L | CG 602L | CG 2002L | CG 3001L | CG 6001L | CG 503L |
|---|---|---|---|---|---|---|---|---|---|
Capacity | 200 g | 300 g | 500 g | 300 g | 600 g | 2000 g | 3000 g | 6000 g | 500 g |
Readability | 0.001 g | 0.001 g | 0.001 g | 0.01 g | 0.01 g | 0.01 g | 0.1 g | 0.1 g | 0.1 g |
Repeatability (+/-) | 0.001 g | 0.001 g | 0.001 g | 0.01 g | 0.01 g | 0.01 g | 0.1 g | 0.1 g | 0.1 g |
Linearity (+/-) | 0.002 g | 0.002 g | 0.002 g | 0.02 g | 0.02 g | 0.02 g | 0.2 g | 0.2 g | 0.2 g |
Pan Size (mm) | 90 Ø | 90 Ø | 90 Ø | 128 Ø | 128 Ø | 138 Ø | 183 x 160 | 183 x 160 | 183 x 160 |
specification
Model | CG 302 | CG 602 | CG 1202 |
|---|---|---|---|
Capacity | 300 g | 600 g | 1200 g |
Readability | 0.01 g | 0.01 g | 0.01 g |
Repeatability (+/-) | 0.01 g | 0.01 g | 0.01 g |
Linearity (+/-) | 0.02 g | 0.02 g | 0.02 g |
Pan Size (mm) | 118 Ø | 118 Ø | 145 x 125 |
Table Top Scale

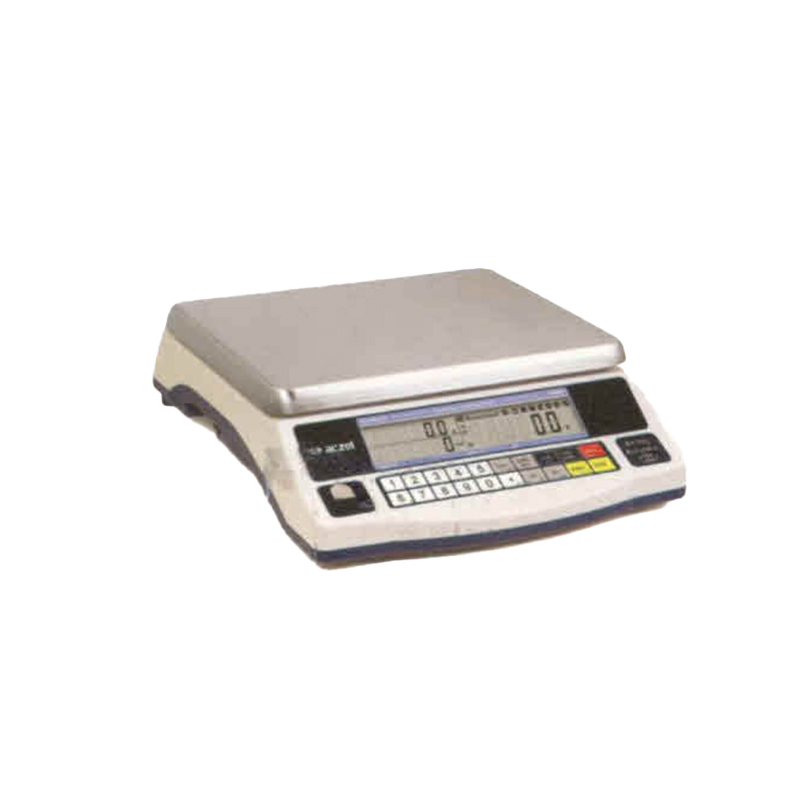

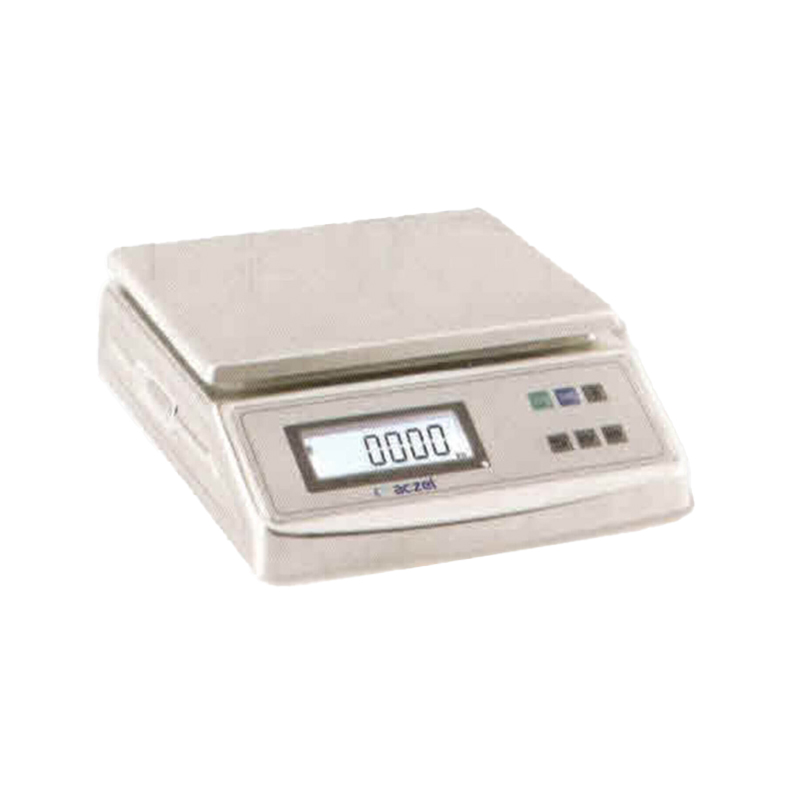

CG Series -Table Top Scale
specification
Model | CG 3 | CG 6 | CG 10 | CG 15 | CG 30 |
|---|---|---|---|---|---|
Capacity | 3 Kg | 6 Kg | 10 Kg | 15 Kg | 30 Kg |
Readability | 0.1 g | 0.5 g | 0.5 g | 1 g | 1 g |
Pan Size (mm) | 275 x 220 | ||||
CG-N Series - Counting Scale
specification
Model | CG 3N | CG 6N | CG 10N | CG 15N | CG 30N |
|---|---|---|---|---|---|
Capacity | 3 Kg | 6 Kg | 10 Kg | 15 Kg | 30 Kg |
Readability | 0.1 g | 0.5 g | 0.5 g | 1 g | 1 g |
Pan Size (mm) | 275 x 220 | ||||
CG-S Series - Stainless Steel Scale
specification
Model | CG 3S | CG 6S | CG 10S | CG 15S | CG 30S |
|---|---|---|---|---|---|
Capacity | 3 Kg | 6 Kg | 10 Kg | 15 Kg | 30 Kg |
Readability | 0.1 g | 0.5 g | 0.5 g | 1 g | 1 g |
Pan Size (mm) | 260 x 210 | 250 x 210 | |||
